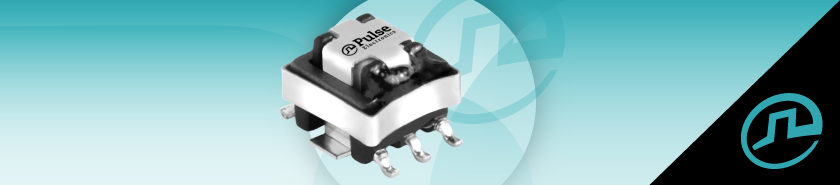

Pulse Electronics Power Business Unit has released a new high frequency current sense transformer series. The AEC-Q200 qualified PA1005.XXXQNL series offers a frequency range of 50kHz to 1MHz and a low-profile SMD package with a 5.5mm height.

The new PA1005.XXXQNL series expands on existing Pulse products and offer high reliability for on-board charging and DC/DC or DC/AC power supply applications.

“The new AEC-Q200 qualified PA1005.XXXQNL series current transformer is the latest addition of Pulse products for high reliability applications. Whether Automotive, Manufacturing, Industrial, or Energy Conversion, the adoption of Pulse AEC-Q200 products helps to reduce adoption risk, improve quality, and ultimately maximize the customer experience in any end application.”
Geoffrey Wildman | Global Marketing Manager

PA1005.XXXQNL Series Key Features

PA1005.XXXQNL series is part of our current sense transformer family.

  • AEC-Q200 Qualified
  • Height: 5.5mm Max
  • Footprint: 8.4mm x 7.2mm Max
  • Current Rating: up to 20A
  • Isolation Voltage: 900 Vrms
  • Frequency Range: 50kHz to 1MHz
  • Mounting: SMT
  • Turns Ratio: 1.20 to 1:150
  • RoHS Compliant

PA1005.XXXQNL Applications

The vehicle AC charging inlet requires an on-board AC/DC charger with power factor correction. The PA1005.XXXQNL current transformer is used in series with the boost switch to sense the current in the inductors at the power factor correction stage.

The PA1005.XXXQNL series is ideally suited for the following applications:

  • On-Board charging application for EV (Electric Vehicle) and HEV (Hybrid Electric Vehicle)
  • Switching power supplies
  • Feedback control
  • Overload sensing

PA1005.XXXQNL Mechanicals & Schematics

The PA1005.XXXQNL fits in the circuit as follows:

  • Front end current sensing AC/DC or DC/DC circuits
  • Back end current sensing DC/AC circuit.

This series is available in T&R packaging; please refer to the T&R information in the mechanical and schematic below.



More Info on Our PA1005.XXXQNL Current Sense Transformer Series

To view, compare and download data sheets for all PA1005.XXXQNL series components, visit our dedicated pages for the PA1005.020NL and the PA1005.125NL. To inquire about lead times, competitive pricing, samples and more, simply contact us or use our quote form accessed using the button below.
