power transformer

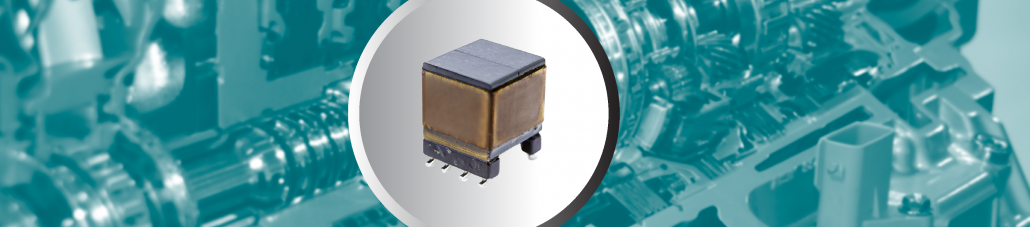

We are excited to present the versatile PM2277, an automotive-grade flyback gate drive transformer designed to cater to a wide range of IGBT device switching needs. This 1.5W flyback transformer provides a +20V output, which can be flexibly transferred to +15V and -5V on the customer’s PC board for SiC switching on and off. The extended creepage distance EP9 platform offers a robust 2.5KV AC withstand voltage in a compact (10.2×10.5×12.5mm) SMD platform.



The PM2277 is purpose-built for the Broadcom ACFJ-3540T, with an input voltage range from 8-18V and an output of 20V/1.5W. It has successfully passed a rigorous 10G vibration reliability test, making it highly reliable in motor environments. This platform also meets the stringent requirements of a 6.2mm creepage distance and complies with IEC60664 for basic insulation.



“We are delighted to report an overwhelming market interest in our pre-existing industrial-grade version and the extensive range of applications it caters to. The customized EP9 bobbin is specially designed to operate flawlessly in critical motor drive environments, boasting a 6.2mm creepage distance and basic insulation that provides isolated power solutions for the IGBT inverter circuit. As an AEC-Q200 and 10G vibration-qualified product, it continues to be the most trusted and reliable solution for even the most demanding applications.”



Gerard Healy | Product Marketing, Power PBU, Pulse Electronics



The winding is fully automated, making this product well suited for high-performance, high reliability requirements in many automotive applications which also require a price competitive solution. Samples are available through the web portal here or via the Pulse distribution network.



To view, compare and download data sheets for our Power Transformer Series utilize our Product Finder and simply enter the prefix of the part number. To inquire about lead times, competitive pricing, samples and more, just contact us or use our quote form accessed using the button below.
