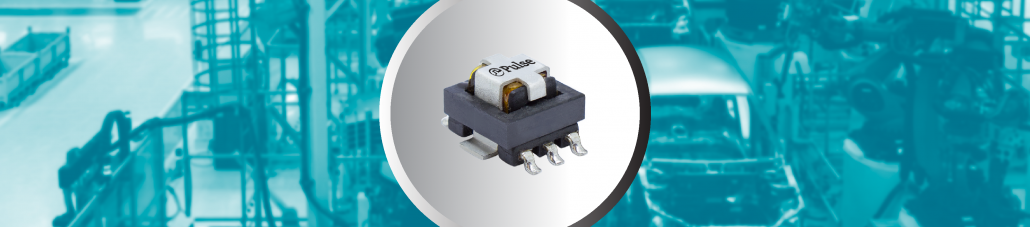

YAGEO Group is delighted to announce the continued expansion of its IATF current sense transformer portfolio with addition of the automotive grade version to the existing PH9494 series. The PMS9494 series supports current measurement of up to 30Arms. The EE8 platform measures 13×10.5×7.2mm, has turn ratios from 1:50 to 1:200 and is capable of effectively measuring frequencies as low as 20kHz. It is the higher current version of the popular PM2165 EE5 series platform and compatible with full winding automation to meet the quality and reliability of automotive applications.
“We were impressed with the automotive market interest in our EE series of current sense transformers and their low DPPM figures that arise from full automation. The PMS9494 series now addresses the ever increasing current measurement requirements. Although providing just functional insulation, we are now able to introduce a voltage rating for 375Vpk, confirmed through partial discharge testing. This will give hardware engineers the added confidence that this solution continue to withstand constant voltage differentials over the lifetime of the products, long after the 1200Vrms galvanic isolation test carried out at our end of line testing.”
Gerard Healy | Product Marketing, Specialized Power, YAGEO Group
An overview of all our current sense magnetic products can be found here. Samples are available through the web portal here or via the Pulse distribution network.
To view, compare and download data sheets for our Current Sense Magnetics utilize our Product Finder and simply enter the prefix of the part number. To inquire about lead times, competitive pricing, samples and more, just contact us or use our quote form accessed using the button below.
