Low industrial pulsejack

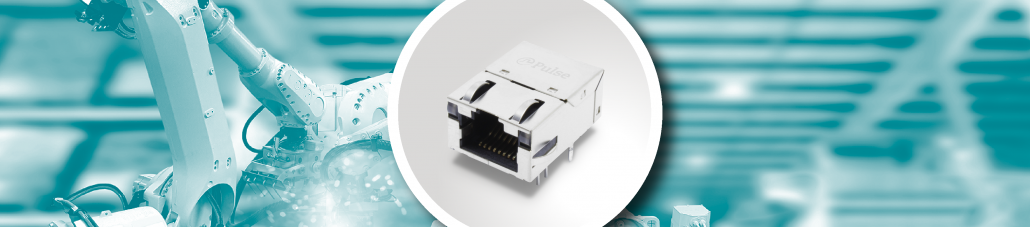

Pulse announces a set of three new low-profile PulseJack® ICM products for industrial use which are fully ROHS-6 compliant.  The parts are direct replacements to the “J0G-” products already available and listed on our website, but have been designed to cover the extended operating temperature range from -40oC to +85oC, making them idea for industrial and outdoor equipment and applications

 The JXD1-1V07NL and JXD1-1V17NL are targeted at customer looking to upgrade the environmental needs when using J0G-0007NL while JXD1-1V09NL is for those who are supporting 1Gigabit on J0G-0009NL.

“The new components combine transformers and chokes for isolation of ethernet interfaces up to 2250Vdc supporting 100Base-Tx (fast ethernet)  and 1000Base-T (1 Gigabit) in a low-profile integrated RJ45 THT connector sitting just 11.5mm above the PCB. “ said Robert Frost – Pulse Wired PBU Product Marketing Associate Director.  He then added “The JXD1-1V07NL and JX1-1V17NL (without EMI) can also support industrial ethernet protocols like Profi-Bus, MODbus, EtherCAT and PowerLink, and they are fitted with a bi-colour Green-Orange LED and Yellow LED combination for USER panel signal and link status indication. The gigabit design for JXD1-1V09NL utilises all 12 PCB pins – this allows for access to the central taps of the transformers giving it the flexibility to support both leading current sink (Idr/AFE) and Voltage driven (Vdr/DSP) Phys out in the market.”

Robert Frost, Product Marketing Associate Director, Wired Communications PBU, Pulse Electronics

The low-profile height of 11.5mm is ideal for PCI, PCIe, AMC, PMC, and Cardbus mezzanine card designs for embedded applications where height is a premium

Visit the Pulse website for the Datasheet J50x.A(10/22) to see the Electrical and mechanical specifications and schematics and packing for these newly promoted products.


To view, compare and download data sheets for our PulseJack® series utilize our Product Finder and simply enter the prefix of the part number. To inquire about lead times, competitive pricing, samples and more, just contact us or use our quote form accessed using the button below.
