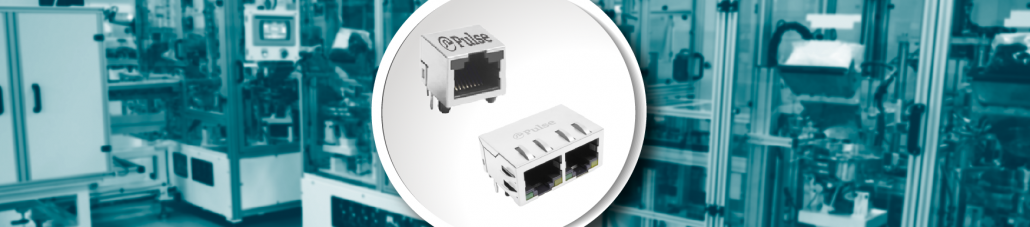

Pulse Electronics launches a selection of pure right-angled, through hole reflow (THR) compatible RJ45 connectors in Latch /Tab-Up configuration. The new E5J88- series has a shallow depth from the edge of the PCB of just 15mm and when used with a standard industrial Ethernet transformer – like HX1188NL – also from Pulse, can vie for the same space as a single integrated solution such as JX10/JXR1-0011NL. However, the discrete solutions give a more flexible option when it comes to component placement, as the reverse of the PCB can also be used with PCMCIA magnetics.
The E5J88-4xLHxx-LT (1×1, single port) or the E5J88-4xAHxx-LT (1×2, dual port) are fitted with 2x green/yellow bi-colour LEDs which have been ruggedized to withstand high temperature reflow soldering processes.
These connectors will meet the requirements of CAT5e when used with an approved Pulse 1GbE LAN transformer and support currents up to 1.5A for Power over Ethernet (PoE) if needed.
“These pin-in-paste RJ45 designs offer a great alternative to SMD solutions but with all the robustness of a THR component. Their size and form factor provides space saving and flexibility for Industrial use, supporting RS232/485, fast and gigabit ethernet, and up to 1.5A /48V DC supply with PoE/PoE++. Another great product as one always expects from Pulse Electronics.”
Robert Frost | Product Marketing, Power PBU, Pulse Electronics
|
Part Number |
Number of Ports |
Colour |
EMI Fingers |
LED Option (Left/Right) |
Gold contact thickness |
Temp. Rating |
|
E5J88-31LHS4-LT |
Single |
Black (GFN) |
NONE |
Yellow /Green |
30u” |
-40°C to +85°C |
|
Single |
Black (GFN) |
NONE |
Green-Yellow /Green-Yellow |
30u” |
-40°C to +85°C |
|
|
Single |
Black (GFN) |
TOP & SIDES |
Green-Yellow /Green-Yellow |
30u” |
-40°C to +85°C |
|
|
Dual |
Black (GFN) |
NONE |
Green-Yellow /Green-Yellow |
30u” |
-40°C to +85°C |
|
|
Dual |
Black (GFN) |
TOP & SIDES |
Green-Yellow /Green-Yellow |
30u” |
-40°C to +85°C |
Features and Benefits:
- Industrial Ethernet Data rate from 100Mb to 1GbE
- Operating Temperature -40 to +85°C
- Support power rating from 15W up to 90W
- Bi-Colour LEDs for indicating operating mode
- Rugged Design for industrial and outdoor use.
- Supports reflow soldering – peak 245°C
- Supplied in Trays or Tape and Reel
Applications:
- Industrial / Outdoor:
- Instrument and process control
- Wireless access points and Routers
- Robotics and automation
- Sensing and Remote Metering
- Building Control: Lifts, escalators, HVAC, Lighting, CCTV Security, Keypad/Video entry, Access control
