C-band antenna - W391

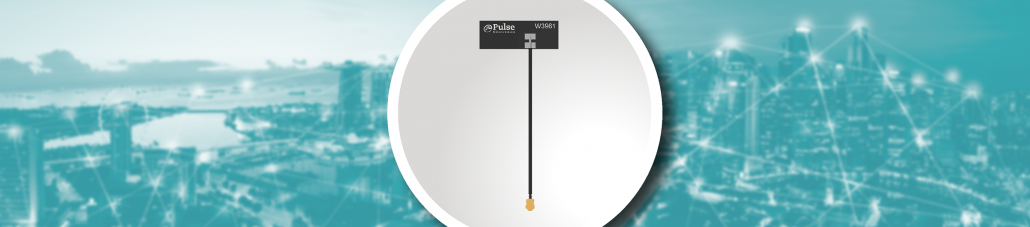

Pulse continues to expand its portfolio of 5G antenna products with the release of the W3961 series. The W3961 series antenna features a flexible, covert, adhesive PCB that covers the CBRS Bands B43 & B48, 3550-3980 MHz.

The explosion of IoT, and the ability of 5G networks to handle a massive number of devices, having a high performance, highly efficient antenna to maximize the low latency IoT capabilities of the 5G network becomes necessary. With AT&T and Verizon both rolling out the mid-band 5G spectrum (3.7-3.98 GHz), known as C-band, the W3961 antenna is an ideal candidate for private cellular networks, robust IoT applications, interactive kiosks, Public Safety and more. The W3961 is a high-performance, FPC antenna, with narrow bandwidth focused on the CBRS or C-Band, with greater than 70% efficiency and 4.5dBi peak gain.

Made from a flexible PCB material the antenna is bendable or even foldable, for extremely tight spaces. With small footprint, only 25.1 x 9.1 mm, the W3961 can be easily integrated in many covert, no drill solutions across a variety of IoT/M2M applications. Our custom manufacturing ability allows for design flexibility with option of custom cable lengths and connector types available.


  • Ground Plane independent
  • Flexible PCB Design for tight spaces
  • Small footprint, 25.1 x 9.1 mm
  • High Gain, 4.5 dBi peak gain
  • Excellent Efficiency – Greater than 70% in specified Band

With the C-Band offering a great balance of speed, capacity, and coverage, our W3961 antenna mirrors that capability offering great balance between size and performance enhancing your C-Band network.  With a small footprint, high performance, and easy installation the W3961 antenna is designed for the next generation of connectivity.

Ryan Wenzelman, Product Marketing, Wireless PBU, Pulse Electronics

To view, compare and download data sheets for our 5G antennas Series utilize our Product Finder and simply enter the prefix of the part number. To inquire about lead times, competitive pricing, samples and more, just contact us or use our quote form accessed using the button below.
