energy-efficient-ethernet-connector-modulesPulse Electronics Networking BU has been transforming the Ethernet connectivity industry. With Pulse’s new range of 1000Base-T Ethernet Connector Modules designers and engineers can operate with the leading voltage driven silicon and PHYs from all the major manufacturers.

Pulse’s Ethernet Connector Module series are designed and manufactured to meet or exceed 802.3ab (1000BASE-T) standards. The demand for Energy Efficiency and “greener” devices was the reason the industry created Voltage-driven PHYs compliant to IEEE802.3az, for Energy Efficient Ethernet (EEE).

“The demand for Energy Efficiency and “greener” devices has created new Voltage driven PHYs compliant to IEEE802.3az, for Energy Efficient Ethernet (EEE).”
Jonas Miller | WW Marketing Manager

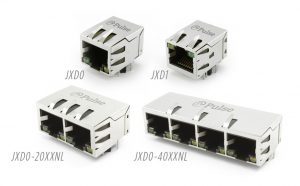

The new series of 1000Base-T Ethernet Connector Modules have multiple package options including 1×1, 1×2 and 1×4. There are options for Tab Up, Tab Down and Top Entry PCB mount angles. This series builds on the latest “JXD” range of compact ICM’s and it features two schematic options for easy PCB layout. These components are suitable for CAT 3, CAT 5 UTP, or higher.

1000Base-T Ethernet Connector Modules Key Features

1000Base-T-Ethernet-Connector-ModulesToday’s engineers are more aware of latest trends surrounding Ethernet connectivity and look for ways to incorporate them into their components. Pulse has introduced the new 1000Base-T Ethernet Connector Modules to meet the demand for seamless product integration. Engineers can expect this new series to not only deliver high-quality parts but also create a “greener” product.

The new 1000Base-T Ethernet Connector Modules are a part of our Ethernet Connector Modules family:

  • Meets or Exceeds 802.3az (1000BASE-T) Standards
  • -40°C to +85°C operating temperature
  • Suitable for CAT 3, CAT 5 UTP or higher
  • Easy PCB layout due to Dual Schematic options
  • UL File Listing E216117
  • Compact form factor optimizing board space
  • Supports all major PHY manufactures

1000Base-T Ethernet Connector Modules Applications

1000Base-T Ethernet Connector Modules offer energy efficient Ethernet that is compatible with the primary PHY suppliers. With an easy PCB layout, all complex routings are made inside the Pulsejacks, reducing EMI and simplifying PCB tracking.

The 1000Base-T Ethernet Connector Modules are ideally suited for the following applications:

  • Industrial Automation
  • Process or Remote Control and Monitoring
  • Campus, Factory, or Rugged Communication Networks
  • Routers
  • Switches for SMB and SoHo markets

These parts can be used on any applications requiring 1000Base-T and extended temp. -40C to +85C.

1000BASE-T Energy Efficient Ethernet Designer Kit (UKIT-006GP)

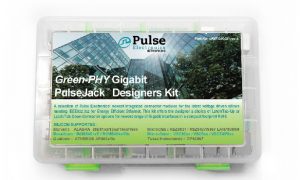

green-phy-gigabit-pulsejack-kitOur new Green-PHY Gigabit PulseJack Designer Kit is a selection of the Ethernet connector modules for the latest voltage driven silicon meeting IEEE802.3az for Energy Efficient Ethernet. This kit offers the designer a choice of Latch/Tab-Up or Latch/Tab-Down Connector options for the newest range of Gigabit interfaces in a compact footprint RJ45.

Easy PCB Layout:

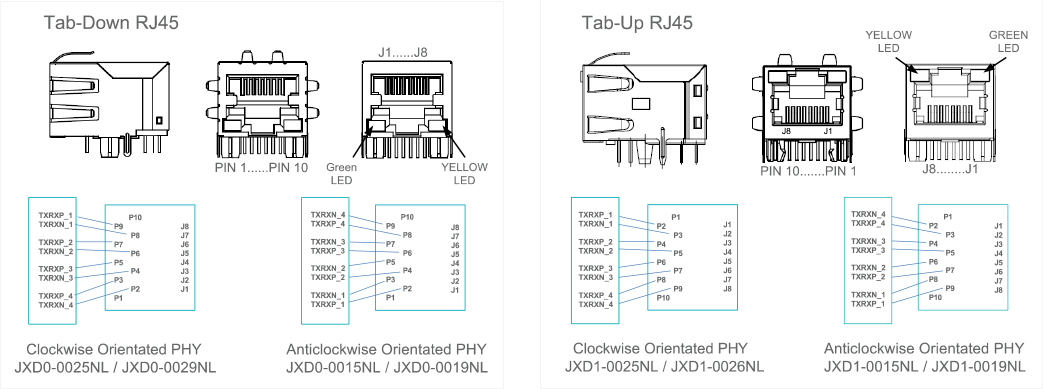

Each part has been designed for easy PCB layout no matter what orientation of PHY or Tab location is desired as all complex tracking is made inside the Pulsejacks, reducing EMI and leading to a simple PCB layout.

industrial-1000gbaset-green-phy

You can purchase the UKIT-006GP kit by clicking the button below, or continue reviewing parts in the table.

{{cta(‘26708477-531d-49cc-bbc5-e19d5fb20109′,’justifycenter’)}}

PART No.

TAB
LOCATION

No. Ports

EMI TABS

PHY Style

LED Left/Right
(pin style)

JXD0-0015NL

DOWN

1×1

YES

anti-c/w

Green/Yellow (in-Line)

JXD0-0019NL

DOWN

1×1

NO

anti-c/w

Green/Yellow (in-Line)

JXD0-0025NL

DOWN

1×1

YES

clock/w

Green/Yellow (in-Line)

JXD0-0029NL

DOWN

1×1

NO

clock/w

Green/Yellow (in-Line)

JXD1-0015NL

UP

1×1

YES

anti-c/w

Yellow/Green (sides)

JXD1-0019NL

UP

1×1

NO

anti-c/w

Yellow/Green (sides)

JXD1-0025NL

UP

1×1

YES

clock/w

Yellow/Green (sides)

JXD1-0026NL

UP

1×1

NO

clock/w

Yellow/Green (sides)

JXD0-2015NL

DOWN

1×2

YES

anti-c/w

Green/Yellow (in front)

JXD0-2019NL

DOWN

1×2

NO

anti-c/w

Green/Yellow (in front)

JXD1-2015NL

UP

1×2

YES

anti-c/w

Yellow/Green (in-front)

JXD1-2016NL

UP

1×2

NO

clock/w

Yellow/Green (in-front)

JXD0-4015NL

DOWN

1×4

YES

anti-c/w

Green/Yellow (in-front)

JXD2-0015NL

TOP ENTRY

1×1

NO

~

Yellow/Green (top)
