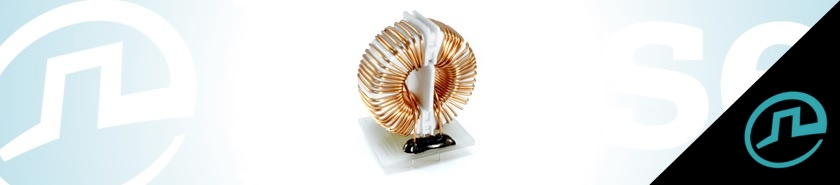

The PA441xNL series is our newest line of THT, high permeability, nanocrystalline common mode chokes.

The series currently contains two products, PA4415NL and PA4416NL, that were purpose built for customers engaged in EMI filter design for AC/DC, DC/DC or DC/AC power supplies.

“These new common mode chokes provide over 4x the impedance in a given form factor compared to traditional ferrite core products, allowing superior EMI performance and high power density.”
John Gallagher | Staff Field Applications Engineer

PA441xNL Key Features

PA441xNL series has been added to our existing family of common mode chokes. Both the PA4415NL and PA4416NL are RoHS compliant and deliver an exceptionally high level of impedance per unit volume, stable impedance across temperature range, compact design, and high quality, automated manufacturing.

  • Dielectric Strength: 1500Vrms
  • Inductance Range: 14 mH (at 8A) to 35mH (at 5A)
  • Height: 46.0 mm max
  • Footprint: 43.0 mm x 26.0 mm
  • Voltage Rating: 250 Vac Max, 1500 Vrms Hi-pot
  • Nanocrystalline Core
  • RoHS Compliant

PA441xNL Applications

The amorphous core within the PA441xNL series enables high impedance per volume, allowing designers to minimize board space while while maximizing common mode noise rejection.

These capabilities make the PA441XNL series ideally suited for the following applications:

  • AC/DC Power Supply
  • Solar
  • Motor Drives
  • Industrial Control
  • EV Charging
  • Smart Grid
  • Power Generation

PA441xNL Mechanicals & Schematics

Within the circuit, the PA441xNL series fits as the front end EMI filter on AC/DC or DC/DC circuits or back end filtering on DC/AC circuit. Mechanicals and schematics below…


Impedance vs. Frequency
—– PA4415NL, —– PA4416NL


More Info on Our PA441xNL Series Common Mode Chokes

To view, compare and download data sheets for all PA441xNL series components, visit our dedicated pages for the PA4415NL and the PA4416NL. To inquire about lead times, competitive pricing, samples and more, simply contact us or use our quote form accessed using the button below.

Download Datasheet | View Press Release
