The BSPQ RF Inductor series, intended for mobile devices, automotive electronics & networking/server products, accomplishes tight frequency filtering in a small profile package. Manufactured with a lithography process Pulse’s RF Inductors offer High-Q Values and excellent current rating.
The BSPQ Series Features include:
High-Q Values: >20 (0603 series), & >14 (0402 series)
DCR Range(ohms): .04-.82 (0603 series) & .01-2.26 (0402 series)
Inductance range: .6-22nH (0603 Series) & .2-10nH (0402 series)
High-Q RF Inductor
LTCC Product Portfolio
RF Component (Filter/Balun/Coupler/Diplexer)
BPF, LPF
Balun
Diplexer / Triplexer
Balanced BPF
Coupler
Ceramic Antenna
RF CHIP INDUCTOR
CHIP ANTENNA
PATCH ANTENNA
ACTIVE ANTENNA
HIGH-Q SERIES
Ceramic Antenna
RF CHIP INDUCTOR
CHIP ANTENNA
PATCH ANTENNA
ACTIVE ANTENNA
HIGH-Q SERIES
HIGH-Q RF INDUCTOR
High-Q RF Description
Thin-film inductor with L-shape terminations and optimization of inner coil structure using photolithography manufacturing
BSPQ00060304 Series
Size L x W x T (mm) – 0.6 x 0.3 x 0.4
Inductance Range(nH) – 0.6 – 22
Q@500MHz – Q≥20
High-Q RF Description
- Photolithography Technology
- HigherQ
- Tight Tolerance
- Low RDC
BSPQ00040203
Size L x W x T (mm) – 0.4 x 0.2 x 0.3
Inductance Range(nH) – 0.2 – 22
Q@500MHz – Q≥13
Application
- Mobile Phones
- RF Modules (FEM,WiFi, PA)
BSPW00060304
• Dimensions
• Electrical Characteristics
BSPQ00040203
• Dimensions
• Electrical Characteristics
Coding Rule
Performance Benchmark

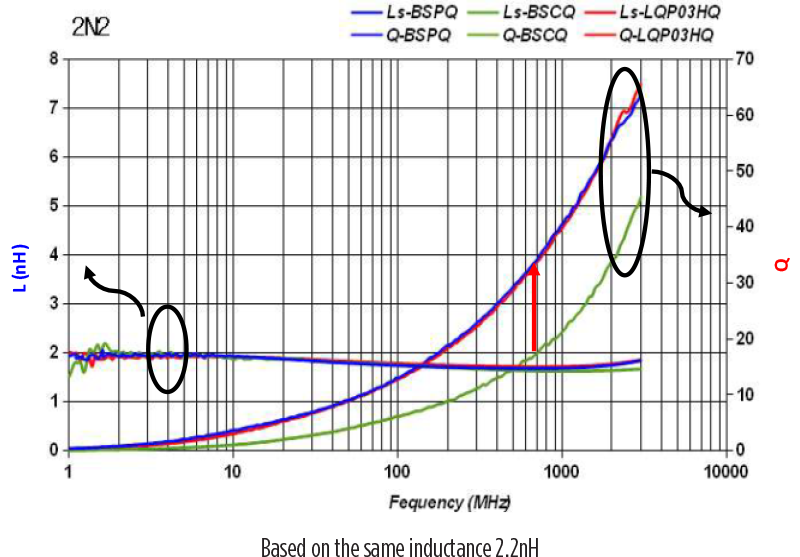

• High-Q series has significant increase in Q value, compared to general series.
