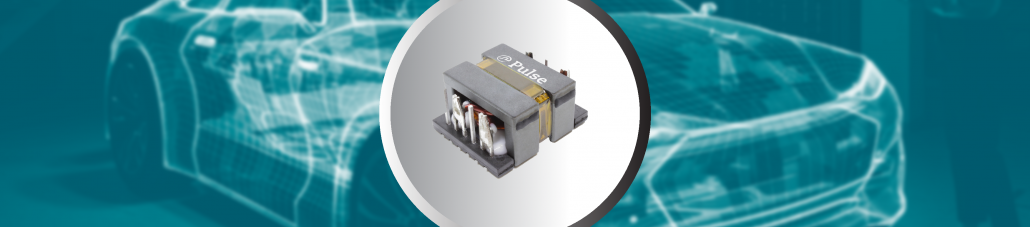

YAGEO Group continues its expansion of automotive grade IATF catalogue common mode choke with the addition of the PM9408 series. Using our round wire coil winding technology, horizontally mounted in a planar core, these PM940x series offer one of the highest current (up to 39A) CMC products in the market in surface mount packages. This family offers inductances from 120µH to 480µH in the ER19 platform, having a footprint of 24.9 x 21.6mm, and now up 1500 µH in the ER25 platform, having the footprint of 30.5 x 27mm
“The widespread interest in the pre-existing industrial grade product from the automotive market testifies to the cutting edge nature of this design. Unfulfilled application requirements for high current CMC in SMT platforms drove the development of the initial PM9407 product offering. A further market requirement for high current and in particular for operation temperature range up to 150C has now driven the qualification and IATF launch of the larger PM9408 series. A 160uH/39A common mode choke with a height less than 15mm is truly a one of a kind product.
Gerard Healy | Specialized Power PBU, YAGEO Group
YAGEO’s fully automated round wire coil winding technology, developed and in high volume production for other product lines, is a perfect match for the high-performance, high-reliability requirements of the automotive market. Manufacture is on an IATF certified production line with full PPAP available on request.
Further information to understand the operation of the common mode chokes, and how they can be used as a part of the EMI filtering circuit is available on our white paper – “How Does it Work – Common Mode Chokes”.
To view, compare and download datasheets for our Common Mode Chokes series utilize our Product Finder and simply enter the attributes of interest or view our Common Mode Chokes Overview. To inquire about lead times, competitive pricing, samples, and more, just contact us or use our quote form accessed using the button below.
