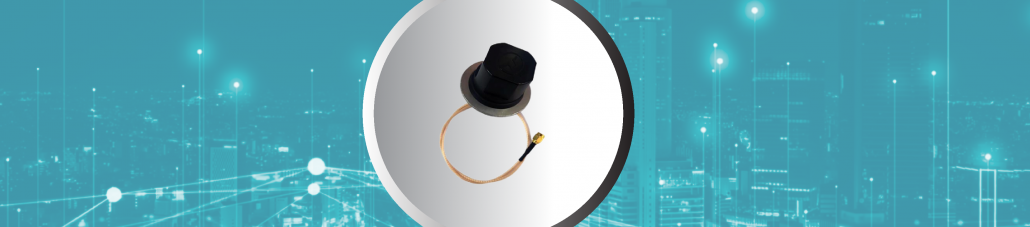

YAGEO Group introduces the LPTNG24-71DMG0457, a triple-band WiFi antenna that combines high performance, durability, and effortless integration. Designed to support WiFi 6E and 7 standards, this antenna operates across 2400–2500 MHz and 4900–7125 MHz frequencies, ensuring reliable connectivity for the latest wireless technologies. Its ground plane independence eliminates the need for additional grounding, simplifying installation and making it a versatile choice for IoT, M2M, and industrial applications.
Built to perform in harsh conditions, the LPTNG24-71DMG0457 features an IP67 ingress protection rating, making it resistant to water and dust ingress, and a UL94-5VA flame-resistant radome for enhanced safety. The low-profile design, just 34.5mm tall when mounted, makes it ideal for space-constrained environments such as non-metallic utility boxes. With high efficiency, a linear polarized omni-directional radiation pattern, and easy integration via its SMA-Male connector and 1.5ft RG316 cable, this antenna is the perfect solution for demanding next generation WiFi applications.
Features and Benefits
- Supports Wi-Fi 6E and 7 (2400–2500 MHz and 4900–7125 MHz).
- Ground Plane Independent
- IP67 & UL94-5VA Flame Rating
- Small footprint and low profile, Ø45.50mm x 34.5mm
- 80% (2.4 GHz) and 64% (4900-7125 GHz) with peak gains of 2.6 and 2.9 dBi.
- Standard SMA-Male connector with a 1.5ft RG316 cable, customizable upon request.
Applications
- IoT and M2M communications
- Industrial automation
- Industrial metering
- Remote monitoring systems
- Remote Vending
- Smart utilities
To view, compare and download data sheets for our Antenna Series utilize our Product Finder and simply enter the prefix of the part number. To inquire about lead times, competitive pricing, samples and more, just contact us or use our quote form accessed using the button below.
